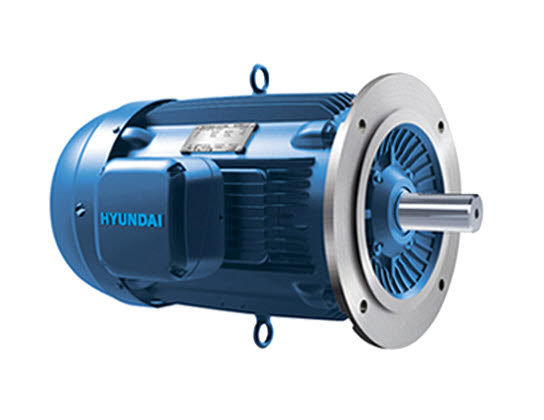

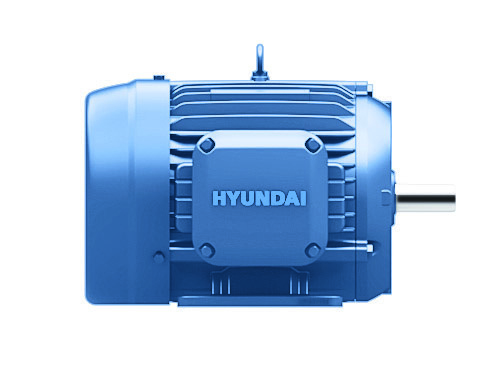

HYUNDAI ELECTRIC MOTOR 10HP (7.5KW)

현대일렉트릭모터

제조사: HD현대일렉트릭
프리미엄효율(IE3), Premium Efficiency
품명: 저압삼상유도전동기 / HYUNDAI AC INDUCTION MOTOR / 현대프리미엄효율전동기 / 현대일렉트릭모터
프레임 132S, 132M, 160M, 160L
기동방식: 직입기동, 와이델타기동, 인버터기동
F종 절연과 B종의 온도상승
보호등급 IP55
규격 및 인증: KS / IEC / NEMA / CE / CSA/ UL / CUS / CC / JEC / JIS
TYPE: TEFC(Totally Enclosed Fan Cooling)
R.P.M: 2P, 4P, 6P, 8P

Availability:In Stock

Category: HYUNDAI ELECTRIC MOTORTag: HYUNDAI ELCTRIC MOTOR IE3 전동기 프리미엄효율모터 현대모터 현대일렉트릭모터 현대일렉트릭모터 10HP 현대일렉트릭모터 7.5KW 현대중공업모터

설명
추가 정보

현대일렉트릭모터 7.5KW 사양서(데이터시트, 외형도) 다운로드

HYUNDAI ELECTRIC MOTOR 10HP DATASHEET — 현대일렉트릭모터 카탈로그
HYUNDAI ELECTRIC MOTOR CATALOG

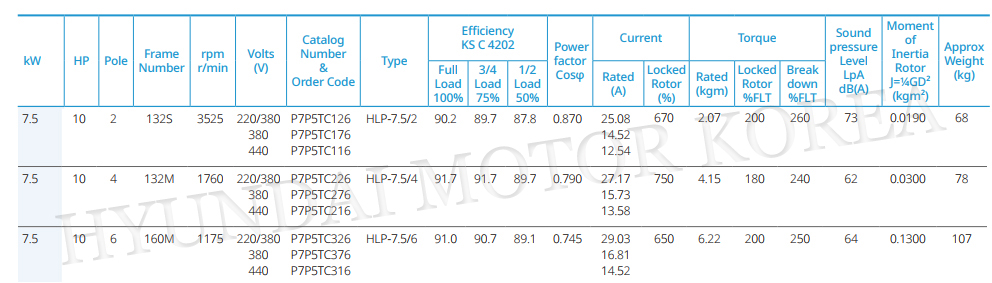

7.5KW 모델번호 및 사양

P7P5TC116
7.5KW(10HP) 2P 440V 60HZ B3 132S
P7P5TC116F2
7.5KW(10HP) 2P 440V 60HZ B3 132S
P7P5TC116E
7.5KW(10HP) 2P 440V 60HZ B3 132S
P7P5TC116EF2
7.5KW(10HP) 2P 440V 60HZ B3 132S
P7P5TC116R
7.5KW(10HP) 2P 440V 60HZ B5 132S
P7P5TC126
7.5KW(10HP) 2P 220/380V 60HZ B3 132S
P7P5TC126F2
7.5KW(10HP) 2P 220/380V 60HZ B3 132S
P7P5TC126E
7.5KW(10HP) 2P 220/380V 60HZ B3 132S
P7P5TC126EF2
7.5KW(10HP) 2P 220/380V 60HZ B3 132S
P7P5TC126R
7.5KW(10HP) 2P 220/380V 60HZ B5 132S
P7P5TC176
7.5KW(10HP) 2P 380V 60HZ B3 132S
P7P5TC176F2
7.5KW(10HP) 2P 380V 60HZ B3 132S
P7P5TC176E
7.5KW(10HP) 2P 380V 60HZ B3 132S
P7P5TC176EF2
7.5KW(10HP) 2P 380V 60HZ B3 132S
P7P5TC176R
7.5KW(10HP) 2P 380V 60HZ B5 132S
P7P5TC216
7.5KW(10HP) 4P 440V 60HZ B3 132M
P7P5TC216F2
7.5KW(10HP) 4P 440V 60HZ B3 132M
P7P5TC216E
7.5KW(10HP) 4P 440V 60HZ B3 132M
P7P5TC216EF2
7.5KW(10HP) 4P 440V 60HZ B3 132M
P7P5TC216R
7.5KW(10HP) 4P 440V 60HZ B5 132M
P7P5TC226
7.5KW(10HP) 4P 220/380V 60HZ B3 132M
P7P5TC226F2
7.5KW(10HP) 4P 220/380V 60HZ B3
P7P5TC226E
7.5KW(10HP) 4P 220/380V 60HZ B3 132M
P7P5TC226EF2
7.5KW(10HP) 4P 220/380V 60HZ B3 132M
P7P5TC226R
7.5KW(10HP) 4P 220/380V 60HZ B5 132M
P7P5TC276
7.5KW(10HP) 4P 380V 60HZ B3 132M
P7P5TC276F2
7.5KW(10HP) 4P 380V 60HZ B3 132M
P7P5TC276E
7.5KW(10HP) 4P 380V 60HZ B3 132M
P7P5TC276EF2
7.5KW(10HP) 4P 380V 60HZ B3 132M
P7P5TC276R
7.5KW(10HP) 4P 380V 60HZ B5 132M
P7P5TC316
7.5KW(10HP) 6P 440V 60HZ B3 160M
P7P5TC316F2
7.5KW(10HP) 6P 440V 60HZ B3 160M
P7P5TC316E
7.5KW(10HP) 6P 440V 60HZ B3 160M
P7P5TC316EF2
7.5KW(10HP) 6P 440V 60HZ B3 160M
P7P5TC316R
7.5KW(10HP) 6P 440V 60HZ B5 160M
P7P5TC326
7.5KW(10HP) 6P 220/380V 60HZ B3 160M
P7P5TC326F2
7.5KW(10HP) 6P 220/380V 60HZ B3 160M
P7P5TC326E
7.5KW(10HP) 6P 220/380V 60HZ B3 160M
P7P5TC326EF2
7.5KW(10HP) 6P 220/380V 60HZ B3 160M
P7P5TC326R
7.5KW(10HP) 6P 220/380V 60HZ B5 160M
P7P5TC376
7.5KW(10HP) 6P 380V 60HZ B3 160M
P7P5TC376F2
7.5KW(10HP) 6P 380V 60HZ B3 160M
P7P5TC376E
7.5KW(10HP) 6P 380V 60HZ B3 160M
P7P5TC376EF2
7.5KW(10HP) 6P 380V 60HZ B3 160M
P7P5TC376R
7.5KW(10HP) 6P 380V 60HZ B5 160M
HKP133AA22H0D3
7.5KW (10HP) 4P 220/380V 60HZ B3 IE3 132M
HKP133AA22H0D3SB
7.5KW (10HP) 4P 220/380V 60HZ B3 IP55 IE3 132M
HKP133CB22H0D3
7.5KW (10HP) 4P 220/380V 60HZ B5 IP55 IE3 132M
HKP133SR209
7.5KW (10HP) 4P 480V 60HZ B3 IP55 IE3 132M
HLP165SR357F2IMK#
7.5KW (10HP) 6P 380V 50HZ B3 IP55 IE3 160M
HLP165SR357IMK#
7.5KW (10HP) 6P 380V 50HZ B3 IP55 IE3 160M
HLP256SR338MKB
7.5KW (10HP) 6P 460V 60HZ B3 IP55 IE3 256T NEMA RY
HLP256SR338MKBF2
7.5KW (10HP) 6P IE3 460V 60Hz IP55 IE3 256T NEMA RY
HP7P5383256H01YAA0FI10D5E1
7.5KW (10HP) 6P 460V 60HZ B3 IE3 256T
HP7P5383256H01YAA0FI20D5E1
7.5KW (10HP) 6P 460V 60HZ B3 IE3 256T
HSP131FR102HPC
7.5KW (10HP) 2P 220/380V 60HZ B5 IE3 132S
HSP131SR107HPYD2
7.5KW (10HP) 2P 380V 60HZ B3 IE3 132S
HSP131YR102HP
7.5KW (10HP) 2P 220/380V 60HZ B3B5 IE3 132S d2G4 (Ex d IIB T4) 내압방폭모터
HSP133FR202A
7.5KW (10HP) 4P 220/380V 60HZ B5 IE3 132M
HSP133FR202KW2
7.5KW (10HP) 4P 220/380V 60HZ B5 IE3 132M
HSP133SR201KW
7.5KW (10HP) 4P 440V 60HZ B3 IE3 132M
HSP133SR202KW
7.5KW (10HP) 4P 220/380V 60HZ B3 IE3 132M
HSP133UR212CT
7.5KW (10HP) 4P 220/380V 60HZ V1 IE3 132M NEMA-D, Cooling-Tower
HSP133UR212HDKJ
7.5KW (10HP) 4P 220/380V 60HZ V1 IE3 132M Cooling-Tower
HV7P522513MA000AA05C00004
7.5KW (10HP) 4P 220/380V 50HZ V1 IE3 132M
PNP163SR308KEPCA#
7.5KW (10HP) 6P 460V 60HZ B3 IE3 160M 한전사양

Hyundai Electric Motor 10HP (7.5KW)
